Protect an Access Database

You have built a Microsoft Access database packed with VBA logic — maybe it handles complex data exports, manages relational integrity, or runs proprietary SQL utilities — and you need to distribute it without exposing your source code.

In this tutorial, you’ll walk through the complete workflow: compiling your Access logic into a protected DLL, wiring it up to Access through the auto-generated VBA Bridge, and optionally adding activation keys with hardware locking.

Time needed: 20-25 minutes

The Scenario: Data Export Toolkit

Imagine you sell a “Data Export Toolkit”: users open your database, click a button, and the macro runs a series of SQL queries, formats the data, and exports it to CSV or JSON using optimized routines.

VBA Padlock allows you to commercialize this tool while keeping your proprietary SQL logic and export algorithms completely hidden inside a native DLL.

Step 1: Create a VBA Padlock Project

Start by opening your Access file in VBA Padlock to create a project that will hold your compiled code and licensing settings.

Launch VBA Padlock from the Start menu.
Click “Open Office File” in the ribbon and select your .accdb file (for example, DataExport.accdb).

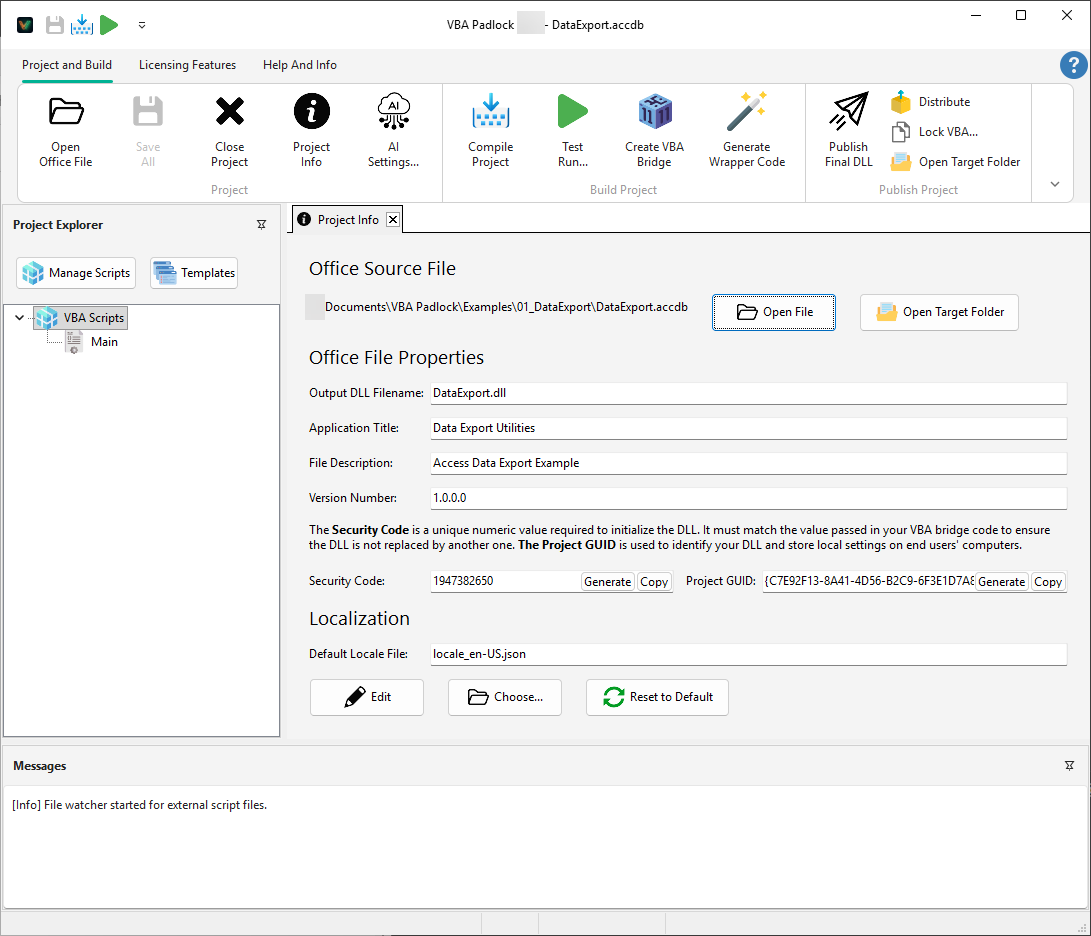

Set Project Information

In the Project Info tab:
- Application Title: Give your tool a name (e.g., Data Export Utilities).
- Security Code: Click Generate to create the unique cryptographic link between your database and the DLL.

Step 2: Write Your Protected Scripts

Switch to the Code Editor. This is where you write the VBA logic you want to hide. Below is an excerpt based on the real DataExport example included with VBA Padlock.

VBA Padlock Code Editor

' PROTECTED CODE (Inside VBA Padlock)
' These functions access Access's database engine via the "Application.CurrentDb" object.

Sub HelloWorld()
    MsgBox "Hello from VBA Padlock!" & Chr(13) & Chr(13) & _
           "Access DataExport is ready.", _
           vbInformation, "VBA Padlock - Access"
End Sub

' Get current database information
Function GetDatabaseInfo()
    Dim DB
    Dim Info
    Dim TableCount
    Dim QueryCount

    Set DB = Application.CurrentDb

    TableCount = 0
    QueryCount = DB.QueryDefs.Count

    ' Count user tables (exclude system tables)
    Dim TDef
    For Each TDef In DB.TableDefs
        If Left(TDef.Name, 4) <> "MSys" And Left(TDef.Name, 1) <> "~" Then
            TableCount = TableCount + 1
        End If
    Next TDef

    Info = "Database: " & DB.Name & Chr(13)
    Info = Info & "Tables: " & TableCount & Chr(13)
    Info = Info & "Queries: " & QueryCount & Chr(13)
    Info = Info & "Version: " & DB.Version

    GetDatabaseInfo = Info
End Function

' Return a comma-separated list of user tables
Function GetTableList()
    Dim DB, TDef, Result
    Set DB = Application.CurrentDb
    Result = ""

    For Each TDef In DB.TableDefs
        ' Filter out system and temp tables
        If Left(TDef.Name, 4) <> "MSys" And Left(TDef.Name, 1) <> "~" Then
            If Len(Result) > 0 Then Result = Result & ","
            Result = Result & TDef.Name
        End If
    Next TDef

    GetTableList = Result
End Function

' Export a table to CSV
Function ExportToCSV(Table, Path, Delimiter)
    Dim DB, RS, Stream, i, Line, Value
    On Error Resume Next
    Set DB = Application.CurrentDb
    Set RS = DB.OpenRecordset(Table)

    If Err.Number <> 0 Then ExportToCSV = False: Exit Function

    Set Stream = CreateObject("ADODB.Stream")
    Stream.Type = 2 : Stream.Charset = "UTF-8" : Stream.Open

    ' Headers and Data rows logic...
    ' (Simplified for the tutorial, full implementation in DataExport example)
    Stream.WriteText "Header1" & Delimiter & "Header2", 1
    Stream.WriteText "Value1" & Delimiter & "Value2", 1

    Stream.SaveToFile Path, 2
    Stream.Close: RS.Close
    ExportToCSV = (Err.Number = 0)
End Function

Backup and SQL functions

Function BackupTable(TableName, BackupSuffix)
    Dim BackupName
    Dim SQL

    On Error Resume Next

    BackupName = TableName & BackupSuffix & "_" & Format(Now, "yyyymmdd_hhnnss")

    ' Delete if exists
    Application.DoCmd.DeleteObject 0, BackupName  ' acTable = 0
    Err.Clear

    ' Create backup using SELECT INTO
    SQL = "SELECT * INTO [" & BackupName & "] FROM [" & TableName & "]"
    Application.CurrentDb.Execute SQL

    BackupTable = (Err.Number = 0)
    On Error GoTo 0
End Function

Function ExportAllTablesToCSV(FolderPath, Delimiter)
    Dim DB
    Dim TDef
    Dim Count
    Dim FilePath

    Set DB = Application.CurrentDb
    Count = 0

    If Right(FolderPath, 1) <> "\" Then
        FolderPath = FolderPath & "\"
    End If

    For Each TDef In DB.TableDefs
        If Left(TDef.Name, 4) <> "MSys" And Left(TDef.Name, 1) <> "~" Then
            FilePath = FolderPath & TDef.Name & ".csv"
            If ExportToCSV(TDef.Name, FilePath, Delimiter) Then
                Count = Count + 1
            End If
        End If
    Next TDef

    ExportAllTablesToCSV = Count
End Function

Function ExecuteScalar(SQL)
    Dim DB
    Dim RS

    On Error Resume Next

    Set DB = Application.CurrentDb
    Set RS = DB.OpenRecordset(SQL)

    If Err.Number = 0 And Not RS.EOF Then
        ExecuteScalar = RS.Fields(0).Value
    Else
        ExecuteScalar = Null
    End If

    If Not RS Is Nothing Then RS.Close
    On Error GoTo 0
End Function

Function ExecuteSQL(SQL)
    Dim DB

    On Error Resume Next

    Set DB = Application.CurrentDb
    DB.Execute SQL, 128  ' dbFailOnError = 128

    If Err.Number = 0 Then
        ExecuteSQL = DB.RecordsAffected
    Else
        ExecuteSQL = -1
    End If

    On Error GoTo 0
End Function

Step 4: Build and Publish the DLL

Click Publish Final DLL in the ribbon, then click Build Final DLL Files on the page that opens.

VBA Padlock compiles your scripts and creates three DLL files in a bin subfolder next to your database:

MyProject/
├── MyDatabase.accdb
├── MyDatabase.vbapadlock/
└── bin/
    ├── MyDatabaserun32.dll    ← 32-bit runtime
    ├── MyDatabaserun64.dll    ← 64-bit runtime
    └── MyDatabase.dll         ← Your compiled scripts (satellite DLL)

The runtime DLLs are digitally signed by G.D.G. Software. The satellite DLL is integrity-verified by an internal cryptographic signature.

Step 5: Inject the VBA Bridge into Access

Now connect the compiled DLL to your Access database:

Open MyDatabase.accdb in Microsoft Access.
Go back to VBA Padlock and click Create VBA Bridge, then click Inject Into Office.
VBA Padlock inserts a VBADLLBridge module into your Access VBA project. You can verify this by pressing Alt+F11 to open the VBA Editor — you should see the bridge module listed under Modules.
The VBA Bridge provides the VBAPL_Execute function that you use to call your compiled functions from Access VBA.

Step 6: Call Protected Functions from Access

Now that the bridge is in place, you can call your compiled functions from any Access VBA module, form, or report. The pattern is always:

result = VBAPL_Execute("FunctionName", arg1, arg2, ...)

Import the example usage module

In the VBA Editor (Alt+F11), go to File > Import File and import ExampleUsage.bas. This module contains ready-to-run demo subroutines. Here are the key examples:

Access VBA Editor showing calls to the protected DLL functions

Get database information

Sub Demo_DatabaseInfo()
    Dim Info As Variant
    Info = VBAPL_Execute("GetDatabaseInfo")
    MsgBox Info, vbInformation, "Database Info"
End Sub

This calls GetDatabaseInfo() in the compiled DLL, which queries Application.CurrentDb and returns a formatted string with the database name, table count, query count, and version.

Access database displaying information retrieved from the protected DLL

Export a table to CSV

Sub Demo_ExportToCSV()
    Dim TableName As String
    Dim FilePath As String
    Dim Success As Variant

    TableName = InputBox("Enter table name to export:", "Export to CSV", "Customers")
    If Len(TableName) = 0 Then Exit Sub

    FilePath = CurrentProject.Path & "\" & TableName & ".csv"

    Success = VBAPL_Execute("ExportToCSV", TableName, FilePath, ";")

    If Success Then
        MsgBox "Exported to:" & vbCrLf & FilePath, vbInformation, "Export Complete"
    Else
        MsgBox "Export failed. Check if table exists.", vbExclamation
    End If
End Sub

Notice the three arguments passed to ExportToCSV: the table name, the output file path, and the delimiter character. The function returns True on success and False on failure.

Export a table to JSON

Sub Demo_ExportToJSON()
    Dim TableName As String
    Dim FilePath As String
    Dim Success As Variant

    TableName = InputBox("Enter table name to export:", "Export to JSON", "Customers")
    If Len(TableName) = 0 Then Exit Sub

    FilePath = CurrentProject.Path & "\" & TableName & ".json"

    Success = VBAPL_Execute("ExportToJSON", TableName, FilePath)

    If Success Then
        MsgBox "Exported to:" & vbCrLf & FilePath, vbInformation, "Export Complete"
    Else
        MsgBox "Export failed. Check if table exists.", vbExclamation
    End If
End Sub

The JSON output is UTF-8 encoded and produces a well-formed JSON array with one object per row.

Create a table backup

Sub Demo_BackupTable()
    Dim TableName As String
    Dim Success As Variant

    TableName = InputBox("Enter table name to backup:", "Backup Table", "Customers")
    If Len(TableName) = 0 Then Exit Sub

    Success = VBAPL_Execute("BackupTable", TableName, "_backup")

    If Success Then
        MsgBox "Backup created successfully!", vbInformation
    Else
        MsgBox "Backup failed. Check if table exists.", vbExclamation
    End If
End Sub

This creates a copy of the table named Customers_backup_20260207_143022 (with the current date and time appended automatically).

Export all tables at once

Sub Demo_ExportAllTables()
    Dim FolderPath As String
    Dim Count As Variant

    FolderPath = CurrentProject.Path & "\Export"

    ' Create folder if it does not exist
    If Dir(FolderPath, vbDirectory) = "" Then
        MkDir FolderPath
    End If

    Count = VBAPL_Execute("ExportAllTablesToCSV", FolderPath, ";")

    MsgBox Count & " table(s) exported to:" & vbCrLf & FolderPath, vbInformation, "Export Complete"
End Sub

Run a SQL query from the DLL

Sub Demo_ExecuteScalar()
    Dim SQL As String
    Dim Result As Variant

    SQL = "SELECT COUNT(*) FROM Customers"
    Result = VBAPL_Execute("ExecuteScalar", SQL)

    If Not IsNull(Result) Then
        MsgBox "Result: " & CStr(Result), vbInformation
    Else
        MsgBox "Query returned no result or error.", vbExclamation
    End If
End Sub

Step 7: Call DLL Functions from an Access Form

A common Access pattern is to wire buttons on a form to DLL functions. Here is how you might build an export form:

' In a form module (e.g., frmExportTools)

Private Sub btnExportCSV_Click()
    Dim TableName As String
    Dim FilePath As String
    Dim Success As Variant

    TableName = Me.cboTableName.Value
    If Len(TableName) = 0 Then
        MsgBox "Please select a table first.", vbExclamation
        Exit Sub
    End If

    FilePath = CurrentProject.Path & "\" & TableName & ".csv"
    Success = VBAPL_Execute("ExportToCSV", TableName, FilePath, ",")

    If Success Then
        MsgBox "Exported " & TableName & " to CSV.", vbInformation
    Else
        MsgBox "Export failed.", vbCritical
    End If
End Sub

Private Sub btnExportJSON_Click()
    Dim TableName As String
    Dim FilePath As String
    Dim Success As Variant

    TableName = Me.cboTableName.Value
    If Len(TableName) = 0 Then
        MsgBox "Please select a table first.", vbExclamation
        Exit Sub
    End If

    FilePath = CurrentProject.Path & "\" & TableName & ".json"
    Success = VBAPL_Execute("ExportToJSON", TableName, FilePath)

    If Success Then
        MsgBox "Exported " & TableName & " to JSON.", vbInformation
    Else
        MsgBox "Export failed.", vbCritical
    End If
End Sub

Private Sub btnShowInfo_Click()
    Dim Info As Variant
    Info = VBAPL_Execute("GetDatabaseInfo")
    MsgBox Info, vbInformation, "Database Info"
End Sub

Private Sub Form_Load()
    ' Populate the table dropdown from the DLL
    Dim Tables As Variant
    Tables = VBAPL_Execute("GetTableList")

    If Len(Tables) > 0 Then
        Dim TableArray() As String
        TableArray = Split(Tables, ",")
        Me.cboTableName.RowSourceType = "Value List"
        Me.cboTableName.RowSource = Tables
    End If
End Sub

Step 8: Distribute

Use the Distribution dialog to package your database with its DLLs:

Click Distribute in the ribbon.
Choose Create ZIP Archive to generate a ready-to-ship package.

The ZIP contains the correct folder structure:

MyDatabase.accdb
bin\
├── MyDatabaserun32.dll
├── MyDatabaserun64.dll
└── MyDatabase.dll

Send the ZIP to your users. They extract it to a local folder and open the .accdb file.

Access-Specific Considerations

Application object access

Your compiled scripts have full access to the Access Application COM object. This means you can use:

Application.CurrentDb — to open recordsets, execute queries, and read table definitions
Application.DoCmd — to run Access actions like TransferSpreadsheet, TransferText, and DeleteObject
Application.CurrentProject.Path — to get the database file location

System tables

When iterating over TableDefs, always filter out Access system tables (prefixed with MSys) and temporary tables (prefixed with ~). The example code demonstrates this pattern.

File paths

The example uses CurrentProject.Path from the calling VBA code to build file paths. Since CurrentProject is an Access VBA object (not available inside the DLL), pass the full path as a parameter to your compiled functions.

NULL handling

Access fields frequently contain NULL values. The export functions in this example handle NULLs explicitly — check IsNull() before converting field values to strings.

Troubleshooting

Problem	Solution
”Failed to initialize DLL” error	Make sure the `bin\` folder is next to the `.accdb` file and contains all three DLLs
Export functions return `False`	Verify the table name is correct and the output path is writable
`CountRecords` returns `-1`	The table does not exist or the name is misspelled
Access security warning about macros	Click “Enable Content” when opening the database, or add the folder to Access Trusted Locations
DLL not loading on another computer	The user needs to extract the full ZIP (database + `bin\` folder) to a local, writable folder

What’s Next?

Licensing Setup

Add license key activation to your Access database so only authorized users can run the exports.

Read the guide →

Key Generation

Generate and distribute license keys to your users.
